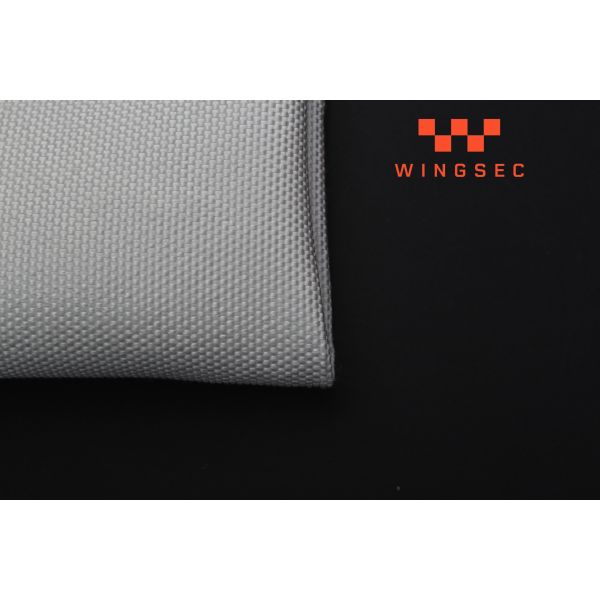

Filtration Texturized Fiberglass Cloth 550C 9um E Glass Cloth

  • 1
  • 2
  • 3

Brand Name : WingSec

Model Number : WS3732

Certification : GB8624

Place of Origin : China

MOQ : 500 Meters

Price : 1.5-2 USD

Payment Terms : L/C,T/T

Supply Ability : 2000 Meters Per Day

Delivery Time : 10-12 Work Days

Packaging Details : Carton Box + Pallet

Product Name : High Temperature Resistance Texturized Fiberglass

Weight : 1020gsm

Yarn : 9um E-glass

Property : Flame retardant

Working Temperature : 550C

Weave Type : Plain Weave

Alkali Content : Alkali Free

Thickness : 1.5mm

Temperature Resistance : Up to 550°C

Contact Now

Texturized Fiberglass Cloth E-Glass Heavey Duty Texturized Fiberglass Fabric For Filtration

Product Introduction

Expanded fiberglass cloth is made from high-temperature-resistant, high-strength bulked yarn through a puffing process. It's a new type of filter cloth developed based on continuous fiberglass filter cloth. Because the yarn is fluffy and breathable, it improves filtration efficiency, reduces filtration resistance, and achieves dust removal efficiencies exceeding 99.5%.

Product Name M30 Texturized Fiberglass Cloth
Thickness 0.8mm
Width 1000mm
Length 50.1m
Weave Structure Plain
Weight 1020gsm
Yarn Density Treads/cm Warp Density 6
Weft Density 3.8
Yarn Type Warp ET9-816 T 860
Weft ET9-1224 T 1250

Product Applications:

  • Electrical insulation tape substrate
  • Aircraft, ships, automobiles
  • Heat insulation
  • High-temperature molten metal filtration
  • Sound insulation and thermal insulation
  • Coating and lamination substrates
  • Welding blankets and fire blankets
  • Expansion joints
  • Insulation screens and insulation
  • Furnace door seals
  • High-temperature gaskets

Product Features:

  • Can be used in low-temperature ranges from -70°C to 1000°C and can withstand transient high temperatures.
  • Resistant to ozone, oxygen, light, and weathering.
  • High strength, high modulus, low shrinkage, and no deformation.
  • Non-flammable and excellent thermal insulation.
  • Maintains a certain degree of residual strength even after exceeding the operating temperature.
  • Corrosion resistant.

Much More Related Products

Item No. Thickness (mm/inch) Width (mm) Glass typer Weave Type Area Weight
(g/m2/oz/yd2)
2025 0.8mm 1000-2000 E-glass loom state Plain 600/17
2115 0.8mm 1000-2000 E-glass loom state Plain 645/18.4
M24 1.0mm 1000/1500 E-glass loom state Plain 815/23.4
M30 1.3mm 1000/1500 E-glass loom state Plain 1020/30
950 1.3mm 1000/1500 E-glass loom state Panama 950/27.3
M33 1.5mm 1000/1500 E-glass loom state Plain 1120/33
M52 2.0mm 1000/1500 E-glass loom state Plain 1760/52
M60 2.5mm 1000/1500 E-glass loom state Plain 2050/60
M75 3.0mm 1000/1500 E-glass loom state Double Twill 2550/75

Filtration Texturized Fiberglass Cloth 550C 9um E Glass Cloth
